Layout Tab

Mod Setup

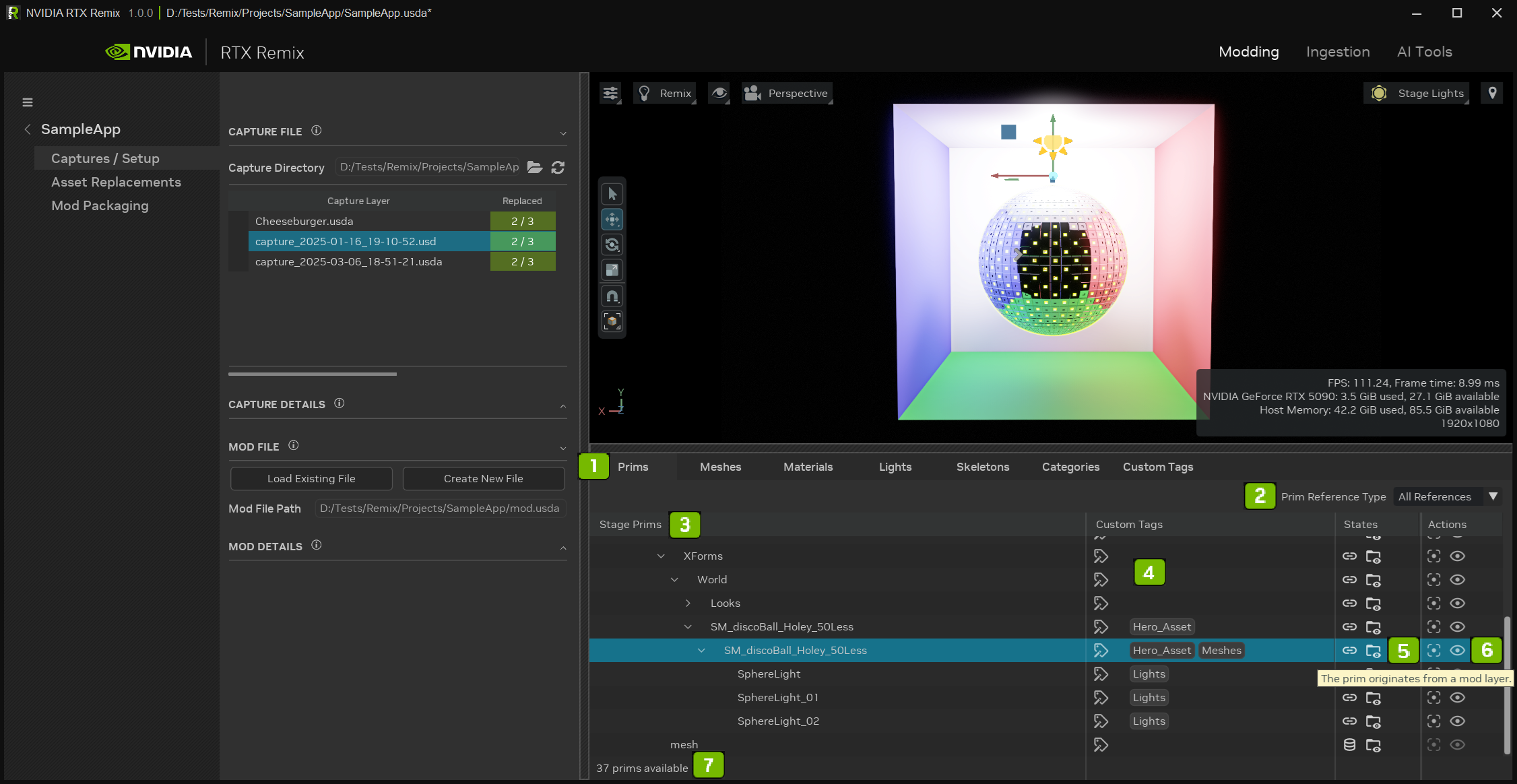

Mod Setup 1

Ref

Option

Description

1

Hamburger Menu

Unload Stage, Reload Stage, Save (Ctrl + S), Save As (Ctrl + Shift + S), Undo (Ctrl + Z), Redo (Ctrl + Y), Preferences, Feature Flags*, Show Logs**, About

2

Project Title

3

Mod Setup Tab

Set the details of your mod project

4

Asset Replacements Tab

5

Mod Packaging Tab

7

Open Project Wizard

Wizard Launches the Project Wizard Panel

8

Capture File

Load the captured game file scene

9

Capture File Location

Directory location of the captured file

10

Loaded Capture

11

Replaces Prims

Background color indicates the percent of the replacements (Red = 0%, Green = 100%)

12

Total Prims in Capture

Background color indicates the percent of the replacements (Red = 0%, Green = 100%)

13

Capture Details

Displays details from the captured layer file loaded into the stage

* Feature Flags: Some experimental features can be enabled early by opening the Feature Flags menu and enabling the various features.

**NOTE:** Experimental features may not be fully stable and may not be completed yet.

** Show Logs: If you experience an issue with the Toolkit, the logs most likely contain the information required to diagnose the problem. If you create a GitHub ticket, please attach the related logs to your ticket.

Mod Setup 2

Ref

Option

Description

1

Mod File

Modify the captured file

2

Load Existing Mod File

Load an existing mod file

3

Create a New Mod File

Create a new mod file

4

Current Path File Location

Directory location of the current file

5

Mod Details

Displays details from the mod layer file loaded into the stage

Asset Replacement

Asset Replacement

Ref

Option

Description

1

Layers Panel

Visual Representation of the USD layers in the mod

2

Bookmarks Panel

A tree of all the bookmark collections and bookmarked items

3

Selection History Panel

A list of recent assets that were selected

4

Selection Panel

Displays the Mesh properties of the selected Mesh

5

Object Properties Panel

Mesh properties of the selected mesh

6

Material Properties Panel

Material properties of the selected mesh

Layers Panel

Layers

Ref

Option

1

Selected Layer

2

Delete, Lock, Mute, Save

3

Create or Insert Layer

Note: USD parent layers combine children layers, giving them more influence.

  • You can rearrange layers by dragging and dropping them to change their hierarchy.

  • Clicking the layer icon next to a layer allows you to set it as the active edit target.

  • To delete a layer, click the Delete button next to it.

  • Lock a layer by clicking the lock button next to it.

  • Mute a layer by clicking the Mute button next to it.

  • Save a layer by clicking the Save button, provided it’s not locked or muted.

  • Create new layers by clicking the Create button at the bottom of the widget.

  • Import existing layers by clicking the Import button at the bottom of the widget.

Bookmarks Panel

Bookmarks

Ref

Option

1

Selected Bookmark

2

Delete, Add, or Empty Collection

  • When you create a bookmark, it will automatically be grouped under the currently selected collection.

  • Both Collections and Items are sorted alphabetically for easy organization.

  • You can rearrange both items and collections by dragging and dropping them to change their order.

  • To rename a collection, just double-click on it.

  • Easily manage items in collections by using the add/remove buttons next to the desired collection.

  • If you select an item in the viewport, the bookmark selection will change if that item is bookmarked.

  • Similarly, selecting an item in the bookmarks will highlight the associated item in the viewport.

Selection History Panel

  • The history keeps track of your last 200 selections.

  • Just click on an item in the history, and it will be selected in the viewport.

Selection Panel

Selection

Ref

Option

1

Selected Asset

2

Delete or Duplicate Reference

3

Create a new Reference to another USD file in the same prim

4

Create a new Stage Light

5

Focus on the Instance

  • The icons in the selection have the following meanings: Capture Mexh Prim, Reference Mesh USD File, Mesh Definition

  • Displays different properties based on what you select in the panel above. If the panel is hidden, nothing will be shown.

  • A blue circle indicates that the property has a value different from the default.

  • A darker background means the property has override(s) from layer(s).

  • You can remove overrides. The list shows overrides from the strongest layer (top) to the weaker layer (bottom).

Object Properties Panel

Object Properties

Ref

Option

1

Reference USD file path

2

Open the File Explorer

3

Referenced Prim

4

Use default Prim instead checkbox

  • Displays different properties based on what you select in the panel above. If the panel is hidden, nothing will be shown.

  • A blue circle indicates that the property has a different value than the default.

  • A darker background means the property has override(s) from layer(s).

  • You can remove overrides. The list shows overrides from the strongest layer (top) to the weaker layer (bottom).

Material Properties Panel

Material Properties

  • Displays different properties based on what you select in the panel above. If the panel is hidden, nothing will be shown.

  • A blue circle indicates that the property has a different value than the default.

  • A darker background means the property has override(s) from layer(s).

  • You can remove overrides. The list shows overrides from the strongest layer (top) to the weaker layer (bottom).

Mod Packaging

Mod Package

Ref

Option

Description

1

Mod Details Panel

The packaged mod name and any additional details about the mod

2

Name

Mod Name

3

Version

Mod Version

4

Details

Information about the Mod

5

Output Directory Panel

The designated package output directory denotes the precise path to which the amassed assets will be systematically copied

6

Override Output Path Checkbox

This checkbox determines whether to use the default packaging directory or implement a user-specified override

7

Open File Explorer

Open the File Directory

8

Open in Explorer

This option facilitates the opening of the Packaging Directory; however, it may not always be available.

9

Selected Layers Panel

This panel provides a comprehensive list of layers that are eligible for packaging

10

Checked or Unchecked Layers

Be cautious when dealing with unchecked layers, as their exclusion may impact the integrity of the mod. Unchecked layers will not be copied into the package

11

Redirect External Mod Dependencies Checkbox

This checkbox governs the decision to either redirect external mod dependencies or replicate them within the current mod. Careful consideration is advised when making this selection

12

Package Button

Start the Packaging Process

Mod Details Panel

  • Name: This identifier will be displayed in the Runtime Mod list, especially when Multi-Mod functionality is supported.

  • Version: The specified version will be strictly enforced by the Runtime system, particularly for Multi-Mod Dependencies.

  • Details: In this section, you can provide comprehensive information about the mod you are packaging. This field allows for arbitrary messages, accommodating diverse content as needed.

Selected Layers Panel

The panel gathers dependencies of the selected layers for packaging the mod in a complete way.

  • Only choose the layers you’ve edited.

  • Dependencies should be packaged separately.

Redirect External Mod Dependencies Checkbox

  • Redirect: This option alters “./deps/mods/” to “../mods/.”

  • Copy: When selected, this function copies the symlink as an actual file into the packaging directory.
