Overview#

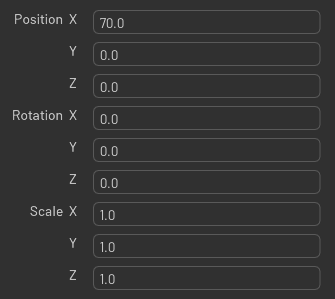

This is the base widget that let you build property widget(s) from any attributes (that come from USD, file, or anything…).

alt text

Because this is a base widget, by default, crating this widget will do nothing. You need to implement what the widget has to show.

Implementation#

The widget uses multiple components:

  • an item model class

  • an item class

  • a model class

  • a delegate class

Item model class#

This is use a regular ui.AbstractValueModel. This item is the value or value of the name that your attribute has.

For example, if you have an attribute “translate” with a value “20”, you will have 2 instances of the item model claas:

  • one the show the value of the name: “translate”

  • one the show the value of the value: “20”

This class can be subclassed to get the value of any data (name or value) (using a listener or not), like USD values, disk file values, etc etc

You can customize what you want to show using the set_display_fn() function.

For example, imagine the value represent some bytes, and the value is 4000. But you want to display everything as kilobytes. You can set a function with set_display_fn() that will divide the value by 1000 to show everything in kilobytes (4). The underneath values will still be 4000, but the UI will display 4.

This feature is mainly used for attribute(s) that are read only. This is a “display” feature, not a “set” one.

Item class#

This is a regular ui.AbstractItem. This item has 2 properties:

  • the name(s)

  • the value(S)

Those 2 properties will be showed for each item into the property widget.

Each of those properties have to return a list of “item model class”.

Model class#

This is a regular ui.AbstractItemModel that the ui.TreeView uses. It will hold all the items “item class”.

Delegate class#

This is a regular ui.AbstractItemDelegate. The delegate will show each value of each item into 2 columns:

  • name(s) in column 1

  • value(s) in column 2

_build_widget has to be subclassed if you want to show your data.

Implementation example(s)#

Please check:

  • omni.flux.property_widget_builder.model.usd

  • omni.flux.property_widget_builder.model.file

For implementation examples.
