Observability (Logs and Metrics)

Overview

This section documents how to configure observability for Omniverse on DGX Cloud. The solution captures Kit application logs and forwards them to your chosen observability platform (Grafana Cloud, Datadog, Azure Monitor) in OpenTelemetry (OTel) format, along with NVCF, and Portal Sample platform metrics.

Key Capabilities

• Real-time OV application log capture and forwarding

• Forward NVCF platform metrics as part of observability

• OpenTelemetry-compliant log transformation

• Automatic health monitoring and recovery

• Seamless integration with Kit-based applications

Terms Used

Term	Explanation
Vector	Refers to vector.dev, an open source log processor
NVCF	NVIDIA Cloud Functions
KitVector	Refers to the Kit App & vector integrated container
OTel	CNCF project; Open Telemetry used for standardizing telemetry format
OTel Collector	NVCF cluster’s Open Telemetry collector; used to export telemetry

Architecture

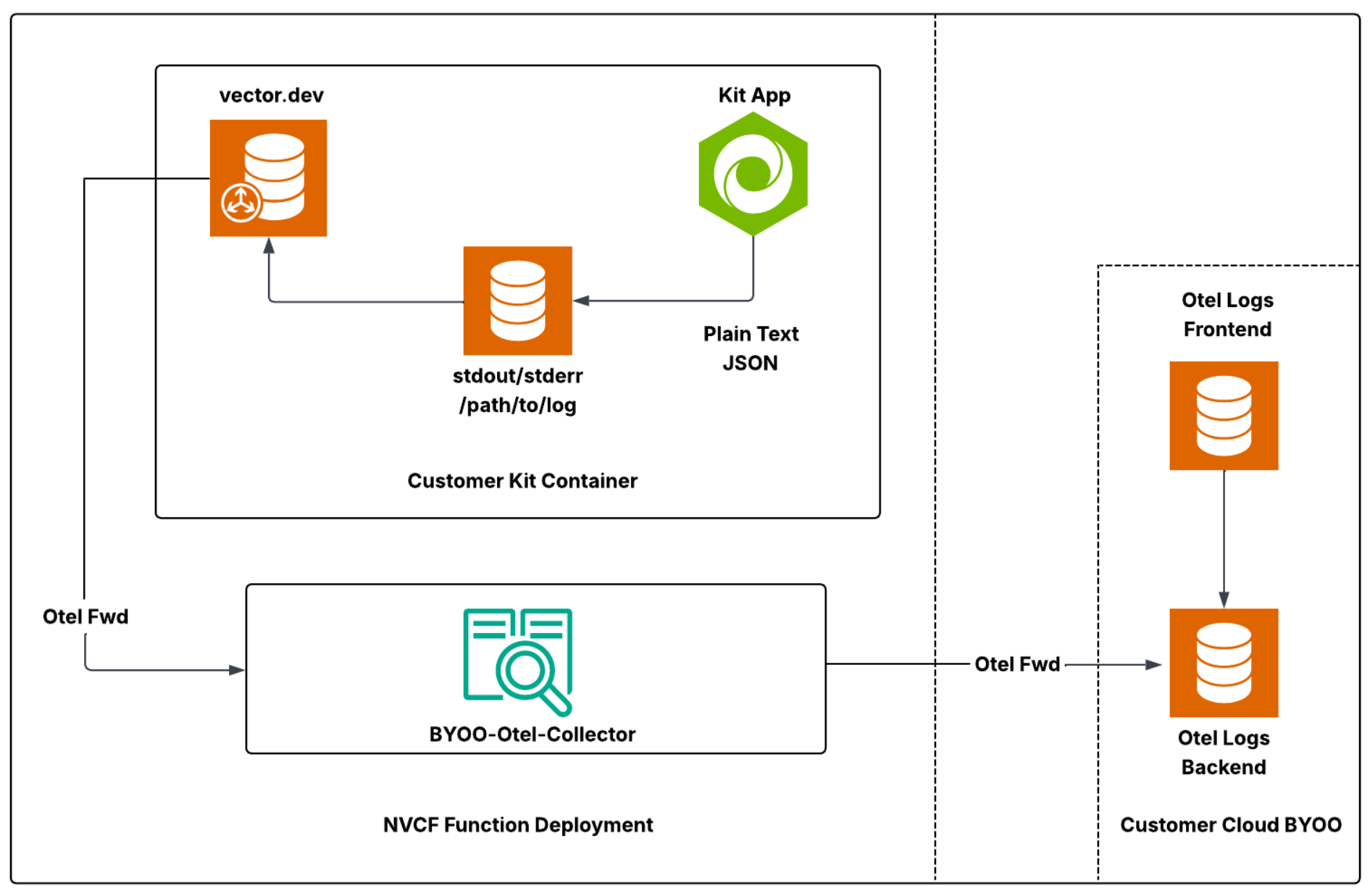

The architecture diagram below illustrates the complete data flow from Kit application logs to your observability platform.

1. The Kit Application is embedded with an open-source log processor (vector.dev in this case) to scrape stdout/stderr or log files. Vector is embedded within the same container.

2. Vector has the following functionalities:

   • Log Capture: Scraping the Stdout/Stderr or a log file location of the Kit Application.

   • Transformation: Transform plaintext logs into OpenTelemetry (OTel) format required by NVCF.

   • Forwarding: Forward the transformed Kit-OTel logs to the BYOO-OTel collector in the NVCF.

Components

Component	Role
Kit Application	Existing OV Kit applications
Vector.dev	Open-source Log processor that captures, transforms, and forwards logs
Dockerfile	Vector & Kit integration within the same container
Custom Entrypoint	Orchestrates Vector configuration and application startup
Vector Configuration	Defines log source, transforms, and sinks. Base64 encoded
NVCF BYOO Collector	Platform component that routes logs to the observability endpoint
Customer Cloud BYOO	Observability endpoint to receive container telemetry

Container Architecture

The enhanced container (Kit + Vector) includes:

• Your existing Kit application and dependencies

• Vector binary (/opt/vector/bin/vector)

• Custom entrypoint script for orchestration

• Health monitoring script

• Vector configuration template

Important Considerations

This procedure document covers:

Kit App & Vector integration:

• Required files and utilities for co-packaging Kit applications with Vector log processor

• Container build process and configuration

• Environment variable setup and validation

Known Limitations & Mitigation

• Kit application logs do not implement a Log File rotation policy currently. This is a known application limitation and is being addressed for engineering. This vector BYOO solution does not implement a log file rotation mechanism.

• Verbose Kit logs can be enabled as a Kit argument during function creation. Verbose Kit logs, while useful for debugging and monitoring, pose risks. The Vector agent captures and redirects all Kit application output (stdout/stderr) to a local log file. However, for continuous applications, verbose logging can exhaust disk space and increase observability costs due to the high data volume. To address this, a feature request has been submitted to implement granular verbose logging levels, aiming to balance detail with resource efficiency.

Prerequisites

• Follow the Developing and Containerizing Apps documentation. If the previous steps were followed, a local Docker container of the OV Kit App should now be available (refer to the document guidelines).

• Observability backend: This guide provides an example to configure Azure Monitor. Steps to configure Grafana Cloud & Datadog are provided in the NVCF Observability Guide.

• vector.dev: Vector is open-source, and platform specific application that can be downloaded from the following link. The current document has been verified against Vector version 0.46.1. We are using vector-0.46.1-x86_64-unknown-linux-gnu.tar.gz for these instructions.

• Procedure
  • Validate Local Container
  • Create working directory
• Integrate Vector Log Processor with Kit Container
  • Configure Vector with a Custom Entrypoint Script
  • Script Components Overview
  • Add the Script Content
  • Vector OTel Transform
  • Transformation Process
  • Create the Vector Configuration File
  • Copy the Vector Configuration
• Create the Dockerfile
• NVCF Configuration for Azure Monitor
  • Add Telemetry Endpoint
  • NVCF Create Telemetry Endpoint
  • Get Telemetry ID
  • Environment Variables
  • Container to Function Flow
  • Confirm Telemetry on Azure Monitor
• Portal Sample Metrics
  • Overview
  • Metrics Exported
  • Dimensional Data
  • Prerequisites
  • OTel Config For Azure Monitor
  • Azure Monitor Setup
  • Create OTel Collector
  • Export Environment Variables
  • Metrics export verification
  • Confirm Telemetry on Azure Monitor
  • Sample Azure Monitor Queries
