Usage Examples#

Create Various Types of Spinners#

import omni.ui as ui
from omni.kit.widget.spinner import FloatSpinner, IntSpinner, IntDragSpinner

# Create a window to hold our spinners
window = ui.Window("Spinner Examples", width=300, height=300)
with window.frame:
    with ui.VStack(spacing=10, height=0):
        # Label for Float Spinner
        ui.Label("Float Spinner (step=0.1, range 0-10)")

        # Create a FloatSpinner with specific step and range
        float_spinner = FloatSpinner(step=0.1, min=0, max=10)

        # Label for Int Spinner
        ui.Label("Int Spinner (step=1, range 0-100)")

        # Create an IntSpinner with specific step and range
        int_spinner = IntSpinner(step=1, min=0, max=100)

        # Label for Int Drag Spinner
        ui.Label("Int Drag Spinner (step=5, range 0-50)")

        # Create an IntDragSpinner with specific step and range
        int_drag_spinner = IntDragSpinner(step=5, min=0, max=50)

Screenshot:#

_images/usage_preview.png

Customize Spinner Orientation and Style#

import omni.ui as ui
from omni.kit.widget.spinner import FloatSpinner, IntSpinner

# Create a window for our custom spinners
window = ui.Window("Custom Spinner Examples", width=400, height=300)
with window.frame:
    with ui.VStack(spacing=10, height=0):
        ui.Label("Vertical Float Spinner (default)")
        # Create a vertical float spinner (default)
        vertical_spinner = FloatSpinner(step=0.5, min=0, max=10, vertical=True)

        ui.Label("Horizontal Float Spinner")
        # Create a horizontal float spinner
        horizontal_spinner = FloatSpinner(step=0.5, min=0, max=10, vertical=False)

        ui.Label("Styled Int Spinner")
        # Create a spinner with custom styling
        custom_style = {
            "background_color": 0xFF9090FF,  # Light red background
            "border_color": 0x0000FFFF,      # Blue border
            "border_width": 1,
            "border_radius": 4,
            "padding": 4
        }
        styled_spinner = IntSpinner(step=1, min=0, max=100, style=custom_style)

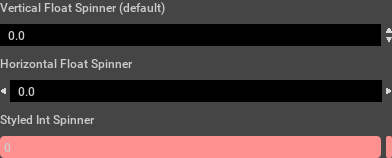

Screenshot:#

_images/customize_spinner_orientation_and_style.png

Get and Set Spinner Values#

import omni.ui as ui
from omni.kit.widget.spinner import FloatSpinner, IntSpinner

# Create a window to demonstrate spinner value manipulation
window = ui.Window("Spinner Value Examples", width=400, height=300)
with window.frame:
    with ui.VStack(spacing=10, height=0):
        # Create a FloatSpinner with an initial value through its model
        float_model = ui.SimpleFloatModel(5.5)
        ui.Label("Float Spinner with model (initial value 5.5)")
        float_spinner = FloatSpinner(model=float_model, step=0.1, min=0, max=10)

        # Create a button to change the spinner value
        with ui.HStack():
            ui.Button("Set to 7.5", clicked_fn=lambda: float_model.set_value(7.5))
            ui.Button("Reset to 0", clicked_fn=lambda: float_model.set_value(0))

        # Create an IntSpinner with a model for value tracking
        int_model = ui.SimpleIntModel(50)  # Starting with a value of 50
        ui.Label("Int Spinner with model (initial value 50)")
        int_spinner = IntSpinner(model=int_model, step=1, min=0, max=100)

        # Button to set int spinner value
        with ui.HStack():
            ui.Button("Set to 75", clicked_fn=lambda: int_model.set_value(75))
            ui.Button("Reset to 0", clicked_fn=lambda: int_model.set_value(0))

        # Widget to display current values
        display_label = ui.Label("Current values:")

        # Function to update displayed values using public API
        def update_values():
            display_label.text = f"Current values: Float = {float_model.get_value_as_float()}, Int = {int_model.get_value_as_int()}"

        ui.Button("Show Current Values", clicked_fn=update_values)

Screenshot:#

_images/get_and_set_spinner_values.png

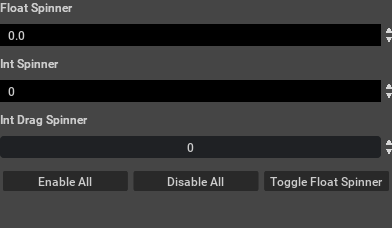

Enable and Disable Spinners#

import omni.ui as ui
from omni.kit.widget.spinner import FloatSpinner, IntSpinner, IntDragSpinner

# Create a window to demonstrate enabling/disabling spinners
window = ui.Window("Enable/Disable Spinners", width=400, height=300)
with window.frame:
    with ui.VStack(spacing=10, height=0):
        ui.Label("Float Spinner")
        float_spinner = FloatSpinner(step=0.1, min=0, max=10)

        ui.Label("Int Spinner")
        int_spinner = IntSpinner(step=1, min=0, max=100)

        ui.Label("Int Drag Spinner")
        int_drag_spinner = IntDragSpinner(step=5, min=0, max=50)

        # Buttons to enable/disable spinners
        with ui.HStack():
            ui.Button("Enable All", clicked_fn=lambda: [
                setattr(spinner, "enabled", True)
                for spinner in [float_spinner, int_spinner, int_drag_spinner]
            ])

            ui.Button("Disable All", clicked_fn=lambda: [
                setattr(spinner, "enabled", False)
                for spinner in [float_spinner, int_spinner, int_drag_spinner]
            ])

            ui.Button("Toggle Float Spinner", clicked_fn=lambda:
                setattr(float_spinner, "enabled", not float_spinner.enabled)
            )

Screenshot:#

_images/enable_and_disable_spinners.png
