Usage Examples#
Create a Basic Search Field#
import omni.ui as ui
from omni.kit.widget.search_delegate import SearchField
# Callback function to process search results
def on_search_results(results_model):
if results_model:
# Get search result items
items = results_model.get_item_children(None)
print(f"Found {len(items)} search results")
for item in items:
print(f"- {item.path}")
else:
print("No search results found")
# Create a window for the search field
window = ui.Window("Search Example", width=400, height=100)
with window.frame:
# Create the search field with our callback
search_field = SearchField(on_search_results)
# Build the UI components
search_field.build_ui()
# Set the search directory
search_field.search_dir = "/path/to/search"
Implement a Custom Search Delegate#
import omni.ui as ui
from omni.kit.widget.search_delegate import SearchDelegate
class CustomSearchDelegate(SearchDelegate):
def __init__(self):
super().__init__()
self._container = None
self._search_field = None
self._is_visible = True
self._is_enabled = True
self._search_directory = "/default/path"
@property
def visible(self):
return self._is_visible
@property
def enabled(self):
return self._is_enabled
@property
def search_dir(self):
return self._search_directory
@search_dir.setter
def search_dir(self, search_dir):
self._search_directory = search_dir
print(f"Search directory set to: {search_dir}")
def build_ui(self):
# Create UI components for the search delegate
self._container = ui.VStack(height=0)
with self._container:
with ui.HStack(height=0):
# Create the search input field
self._search_field = ui.StringField()
# Add a search button
ui.Button(
"Search",
clicked_fn=lambda: print(f"Searching in: {self._search_directory}")
)
def destroy(self):
# Clean up resources
self._container = None
self._search_field = None
# Create a window with our custom search delegate
window = ui.Window("Custom Search", width=400, height=100)
with window.frame:
custom_search = CustomSearchDelegate()
custom_search.build_ui()
custom_search.search_dir = "/my/search/directory"
Complete Search Implementation#
import omni.ui as ui
from omni.kit.widget.search_delegate import SearchField, SearchResultsModel
from omni.kit.search_core import SearchEngineRegistry, AbstractSearchModel, AbstractSearchItem
from datetime import datetime
from typing import List
# Create a mock search engine for demonstration
class MockSearchItem(AbstractSearchItem):
def __init__(self, name, path, is_folder=False):
self.name = name
self.path = path
self.is_folder = is_folder
self.date = datetime.now()
self.size = 1024 # Mock file size in bytes
class MockSearchModel(AbstractSearchModel):
def __init__(self, search_text="", current_dir=""):
self._items = []
# Create mock search results based on search text
if search_text:
for word in search_text.split():
self._items.append(
MockSearchItem(word, f"{current_dir}/{word}.usd")
)
@property
def items(self) -> List[AbstractSearchItem]:
return self._items
# Create the main window
window = ui.Window("Search Integration Example", width=600, height=400)
# Variables to store UI elements
tree_view = None
result_label = None
# Callback to handle search results
def on_search_results(results_model):
global tree_view, result_label
if results_model:
items = results_model.get_item_children(None)
result_label.text = f"Found {len(items)} results"
# Update the tree view with new results
tree_view.model = results_model
else:
result_label.text = "No results found"
tree_view.model = None
# Register our mock search engine
search_registry = SearchEngineRegistry()
subscription = search_registry.register_search_model("MOCK_SEARCH", MockSearchModel)
# Create the UI layout
with window.frame:
with ui.VStack():
# Create a search field at the top
search_field = SearchField(on_search_results)
search_field.build_ui()
search_field.search_dir = "/example/search/directory"
# Label to show number of results
result_label = ui.Label("Enter search terms above")
# Tree view to display search results
tree_view = ui.TreeView(None, root_visible=False)
# Note: Remember to call these when you're done with the search functionality:
# search_field.destroy()
# subscription = None

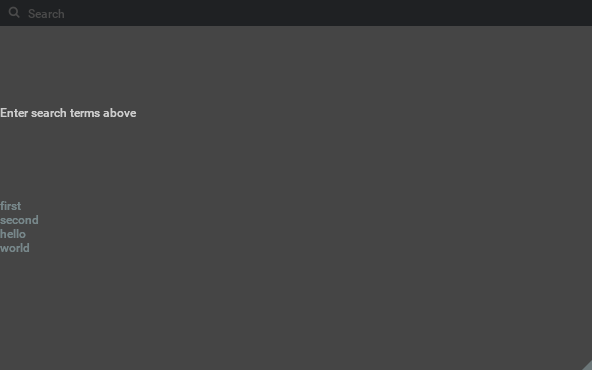

Screenshot:#
Work with SearchResultsModel and Items#
import omni.ui as ui
from omni.kit.widget.search_delegate import SearchResultsModel, SearchResultsItem
from omni.kit.search_core import AbstractSearchModel, AbstractSearchItem
from omni.kit.widget.filebrowser import FileBrowserItemFields
from datetime import datetime
from typing import List
# Create a simple event subscription class
class EventSubscription:
def __init__(self, signal, callback):
self.signal = signal
self.callback = callback
self.active = True
def unsubscribe(self):
if self.active:
self.active = False
if self.signal and hasattr(self.signal, "subscribers"):
if self.callback in self.signal.subscribers:
self.signal.subscribers.remove(self.callback)
# Create a simple search item implementation
class SimpleSearchItem(AbstractSearchItem):
def __init__(self, name, path, is_folder=False):
super().__init__()
# Store values in protected attributes and use property getters
self._name = name
self._path = path
self._is_folder = is_folder
self._date = datetime.now()
self._size = 1024 # Mock file size in bytes
# Override the properties to provide getters
@property
def name(self):
return self._name
@property
def path(self):
return self._path
@property
def is_folder(self):
return self._is_folder
@property
def date(self):
return self._date
@property
def size(self):
return self._size
# Create a simple search model implementation
class SimpleSearchModel(AbstractSearchModel):
def __init__(self, search_text="", current_dir=""):
self._items = []
# Add a signal for item changed events with subscribers list
self.__on_item_changed = type("Signal", (), {"subscribers": []})()
# Create some mock search results based on search text
if search_text:
for word in search_text.split():
self._items.append(
SimpleSearchItem(f"{word}_file", f"{current_dir}/{word}.usd")
)
@property
def items(self) -> List[AbstractSearchItem]:
return self._items
# Implement the subscribe_item_changed method
def subscribe_item_changed(self, fn):
if not hasattr(self.__on_item_changed, "subscribers"):
self.__on_item_changed.subscribers = []
self.__on_item_changed.subscribers.append(fn)
return EventSubscription(self.__on_item_changed, fn)
# Use a simplified example that doesn't require the TreeView
window = ui.Window("Search Results Example", width=500, height=300)
with window.frame:
with ui.VStack():
# Create a search model with mock data
search_model = SimpleSearchModel("material texture lighting", "/path/to/search")
# Display search terms directly instead of using SearchResultsModel
ui.Label("Search terms: material, texture, lighting")
# Display the items directly from the search model
for item in search_model.items:
ui.Label(f"Result: {item.name} - {item.path}")

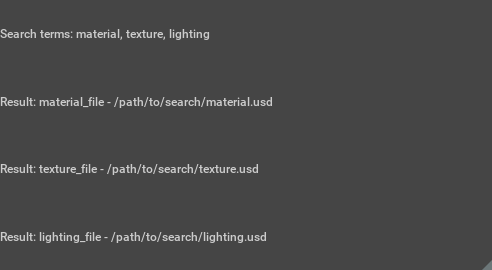

Screenshot:#
