Usage Examples

Join Live Session with Session Link

import omni.ui as ui
from omni.kit.widget.live_session_management_ui import JoinWithSessionLinkWindow

def on_join_session(session_link: str):
    """Callback function called when user confirms joining a session"""
    print(f"Joining session with link: {session_link}")
    # Add your session joining logic here

# Create and show the join session window
window = JoinWithSessionLinkWindow(on_ok_button_cb=on_join_session)
window.visible = True

# Set a session link programmatically
window.current_session_link = "omniverse://localhost/test/stage.usd?live_session_name=my_session"

# Focus the input field for user convenience
import asyncio
asyncio.ensure_future(window.focus_field())

Screenshot:

---

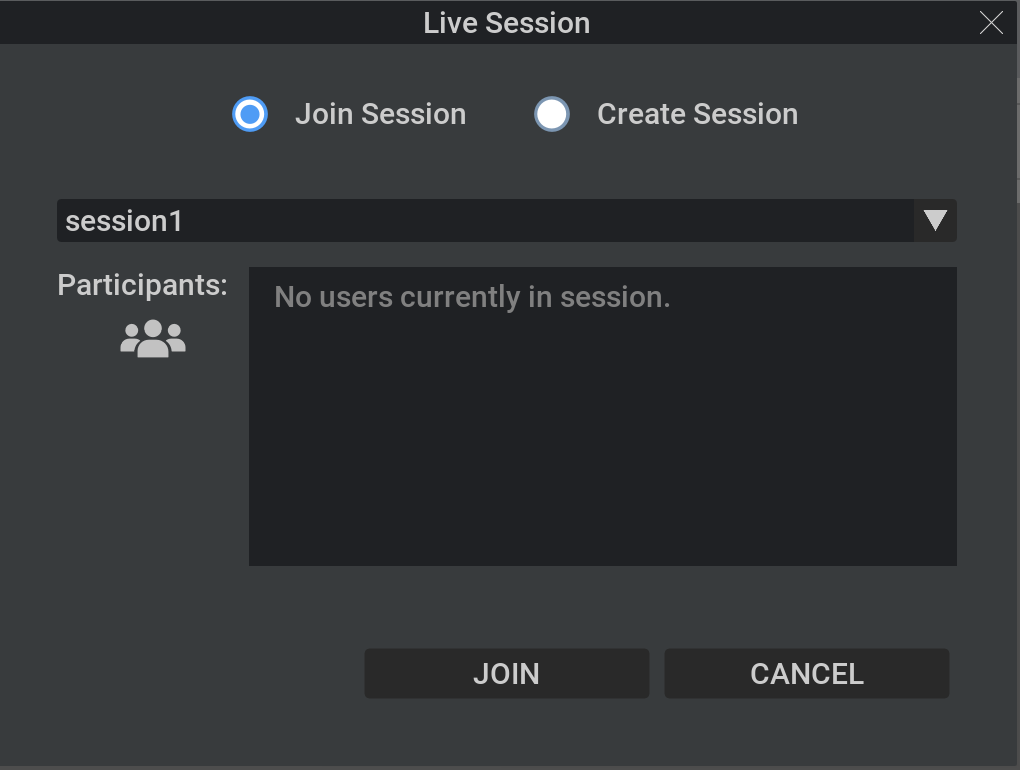

Create Live Session Model and Start Window

import omni.ui as ui
from omni.kit.widget.live_session_management_ui import LiveSessionStartWindow, LiveSessionComboBoxModel, LiveSessionInterface

# Mock implementation of LiveSessionInterface for demonstration
class MockLiveSession:
    def __init__(self, name: str, url: str, owner: str):
        self._name = name
        self._url = url
        self._owner = owner

    @property
    def name(self) -> str:
        return self._name

    @property
    def url(self) -> str:
        return self._url

    @property
    def owner(self) -> str:
        return self._owner

    @property
    def channel_url(self) -> str:
        return f"{self._url}/channel"

    @property
    def base_layer_identifier(self) -> str:
        return "base_layer"

    def get_last_modified_time(self) -> int:
        return 1234567890

    @property
    def shared_link(self) -> str:
        return f"omniverse://localhost/test/stage.usd?live_session_name={self._name}"

def get_current_session(layer_id: str) -> MockLiveSession:
    return MockLiveSession("current_session", "omniverse://localhost/current", "user1")

def get_all_sessions(layer_id: str) -> list:
    return [
        MockLiveSession("session1", "omniverse://localhost/session1", "user1"),
        MockLiveSession("session2", "omniverse://localhost/session2", "user2")
    ]

def join_session_callback(session, layer_id: str, prim_path: str) -> bool:
    print(f"Joining session: {session.name} at {prim_path}")
    return True

def create_session_callback(layer_id: str, session_name: str) -> MockLiveSession:
    print(f"Creating new session: {session_name}")
    return MockLiveSession(session_name, f"omniverse://localhost/{session_name}", "current_user")

# Create the session model
session_model = LiveSessionComboBoxModel(
    layer_identifier="base_layer",
    get_current_live_session_cb=get_current_session,
    get_all_live_sessions_cb=get_all_sessions
)

# Create and show the start session window
start_window = LiveSessionStartWindow(
    session_model=session_model,
    prim_path="/World",
    join_session_cb=join_session_callback,
    create_live_session_cb=create_session_callback
)
start_window.visible = True

Screenshot:

---

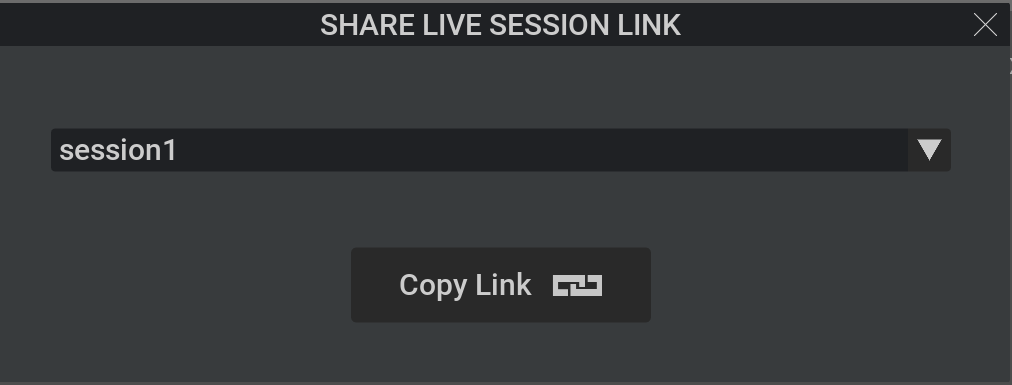

Share Session Link Window

import omni.ui as ui
from omni.kit.widget.live_session_management_ui import ShareSessionLinkWindow, LiveSessionComboBoxModel

# Mock implementation for demonstration
class MockLiveSession:
    def __init__(self, name: str):
        self._name = name

    @property
    def name(self) -> str:
        return self._name

    @property
    def shared_link(self) -> str:
        return f"omniverse://localhost/test/stage.usd?live_session_name={self._name}"

    @property
    def url(self) -> str:
        return f"omniverse://localhost/{self._name}"

    @property
    def owner(self) -> str:
        return "user1"

    @property
    def channel_url(self) -> str:
        return f"{self.url}/channel"

    @property
    def base_layer_identifier(self) -> str:
        return "base_layer"

    def get_last_modified_time(self) -> int:
        return 1234567890

def get_current_session(layer_id: str):
    return MockLiveSession("current_session")

def get_all_sessions(layer_id: str):
    return [
        MockLiveSession("session1"),
        MockLiveSession("session2"),
        MockLiveSession("session3")
    ]

# Create session model
session_model = LiveSessionComboBoxModel(
    layer_identifier="base_layer",
    get_current_live_session_cb=get_current_session,
    get_all_live_sessions_cb=get_all_sessions
)

# Create and show the share session link window
share_window = ShareSessionLinkWindow(session_model=session_model)
share_window.visible = True

Screenshot:

---

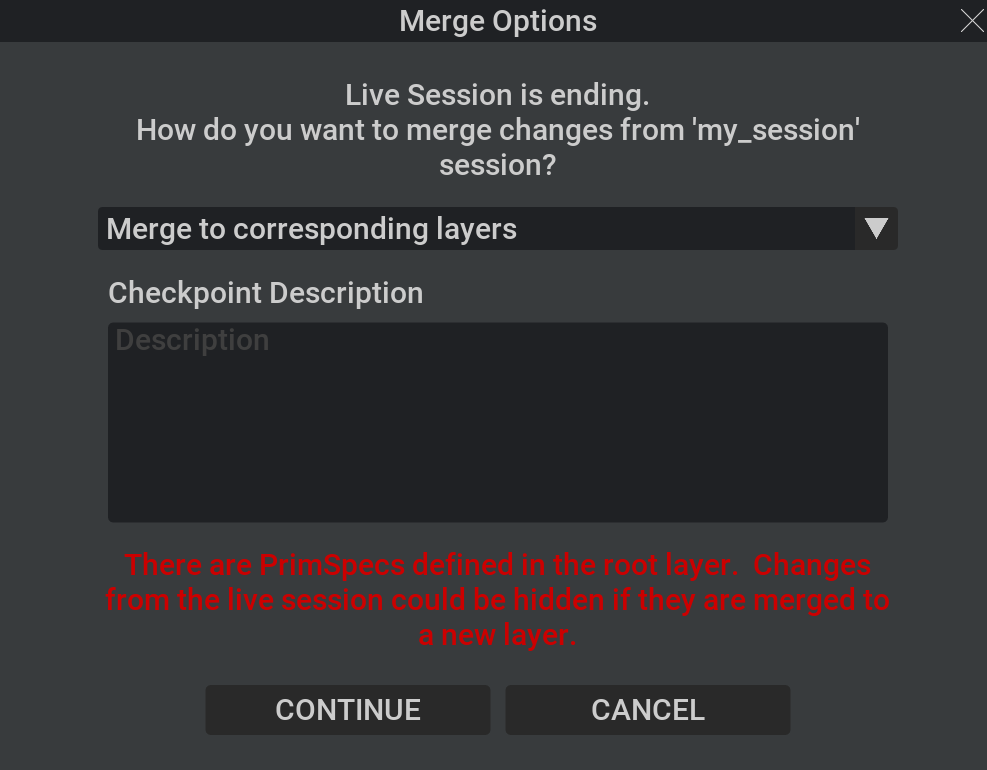

End Live Session with Merge Options

import omni.ui as ui
from omni.kit.widget.live_session_management_ui import LiveSessionEndWindow

# Mock session object for demonstration
class MockSession:
    def __init__(self, name: str):
        self.name = name

    @property
    def shared_link(self) -> str:
        return f"omniverse://localhost/test/stage.usd?live_session_name={self.name}"

def on_session_end():
    """Callback function called when user confirms ending the session"""
    print("Session ended and changes merged")

# Create mock session
current_session = MockSession("my_session")

# Create and show the end session window
end_window = LiveSessionEndWindow(
    current_session=current_session,
    on_ok_button_cb=on_session_end,
    warn_root_prims=True
)
end_window.visible = True

# Use as async context manager
import asyncio

async def handle_session_end():
    async with end_window:
        # Window will show and wait for user interaction
        pass
    print("Session end window closed")

asyncio.ensure_future(handle_session_end())

Screenshot:
